Firewall Installation

As mentioned in Part 1 I will be using OPNSense as the Firewall distribution running on the Micro PC.

Installing OPNSense

1. Download the ISO from https://opnsense.org/download/, I am going to be using the serial version

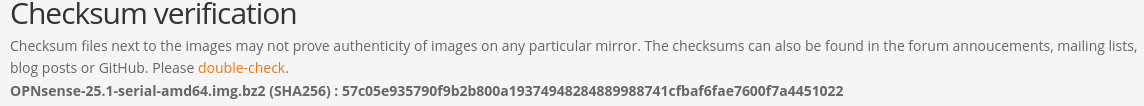

2. Check the Download matches the checksum

   $ sha256sum OPNsense-25.1-serial-amd64.img.bz2
   57c05e935790f9b2b800a19374948284889988741cfbaf6fae7600f7a4451022  OPNsense-25.1-serial-amd64.img.bz2




3. Use bzip2 to decompress the download and then dd to write to USB using a block side of 16k

   # bzip2 -d OPNsense-25.1-serial-amd64.img.bz2
   # dd if=OPNsense-25.1-serial-amd64.img of=/dev/sdg bs=16k status=progress
   2019098624 bytes (2.0 GB, 1.9 GiB) copied, 1 s, 2.0 GB/s
   162294+1 records in
   162294+1 records out
   2659035648 bytes (2.7 GB, 2.5 GiB) copied, 1.31927 s, 2.0 GB/s


4. Okay, that was a bit quick..... lets make sure everything is written using sync

   # sync


5. Checking fdisk to see the partitions written

   # sudo fdisk -l /dev/sdg
   GPT PMBR size mismatch (5193428 != 123699199) will be corrected by write.
   The backup GPT table is not on the end of the device.
   Disk /dev/sdg: 58.98 GiB, 63333990400 bytes, 123699200 sectors
   Disk model: USB Flash Drive
   Units: sectors of 1 * 512 = 512 bytes
   Sector size (logical/physical): 512 bytes / 512 bytes
   I/O size (minimum/optimal): 512 bytes / 512 bytes
   Disklabel type: gpt
   Disk identifier:

   Device     Start     End Sectors  Size Type
   /dev/sdg1     34   66617   66584 32.5M EFI System
   /dev/sdg2  66618   66739     122   61K FreeBSD boot
   /dev/sdg3  66740   67763    1024  512K FreeBSD swap
   /dev/sdg4  67764 5193395 5125632  2.4G FreeBSD UFS


6. As I am using the serial installation I will connect my serial cable upto the com port and then use screen to connect

   sudo screen -L /dev/ttyUSB0 115200


7. With the serial connected we will boot from the USB, to do this we will jump into the bios and use boot override.

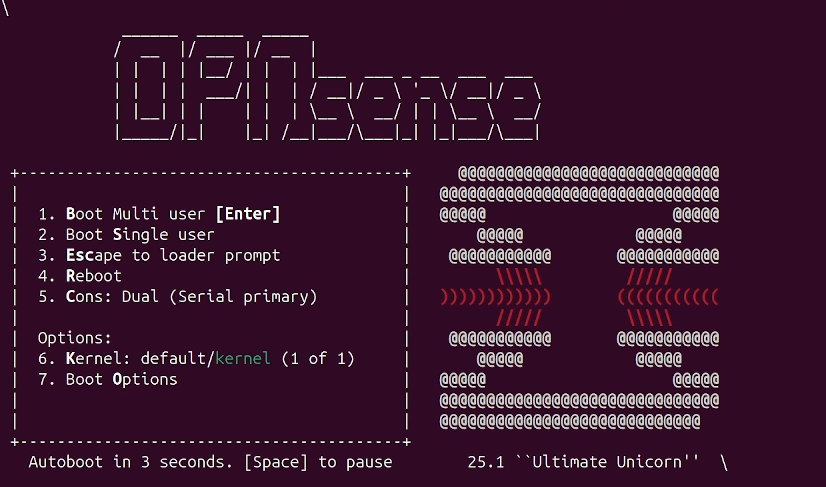

8. When we get to the boot menu we will just let the time count down and take the default boot.

                ______  _____  _____
               /  __  |/ ___ |/ __  |
               | |  | | |__/ | |  | |___  ___ _ __  ___  ___
               | |  | |  ___/| |  | / __|/ _ \ '_ \/ __|/ _ \
               | |__| | |    | |  | \__ \  __/ | | \__ \  __/
               |_____/|_|    |_| /__|___/\___|_| |_|___/\___|

    +                                         +     @@@@@@@@@@@@@@@@@@@@@@@@@@@@
   -|---------------------------------------  |   @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
    |  1. Boot Multi user [Enter]             |   @@@@@                    @@@@@
    |  2. Boot Single user                    |       @@@@@            @@@@@
    |  3. Escape to lo                        |    @@@@@@@@@@@       @
   ader4. Reboot                              |         \\\\\         /////
    |  5. Cons: Dual (Serial primary)         |   ))))))))))))       (((((((((((
    |                                         |         /////         \\\\\
    |  Options:                               |    @@@@@@@@@@@       @@@@@@@@@@@
    |  6. Kernel: default/kernel (1 of 1)     |       @@
   @|@ 7. Boot Options@                       |   @@@@@                    @@@@@
    |                                         |   @@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
    |                                         |   @@@@@@@@@@@@@@@@@@@@@@@@@@@@
    +-----------------------------------------+
      Autoboot in 0 seconds. [Space] to pause
      ```



9. We will just let OPNSense auto detect the interfaces for now

   Press any key to start the manual interface assignment: 10

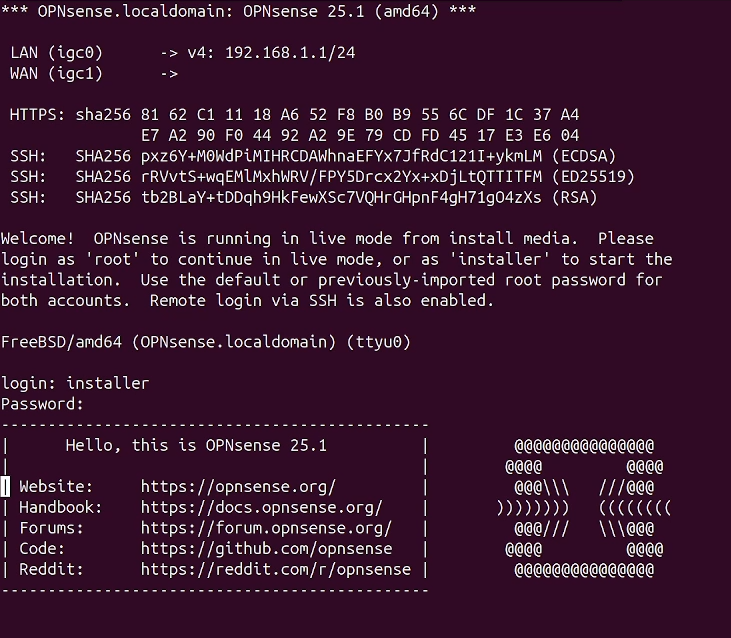

10. To begin the OPNSense installation we need to login as installer and opnsense

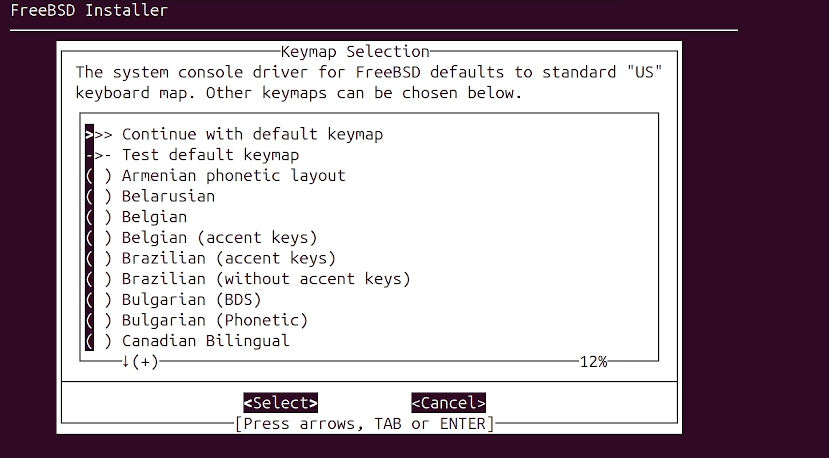

11. This will kick off the installer wizard. We will use the default keymap

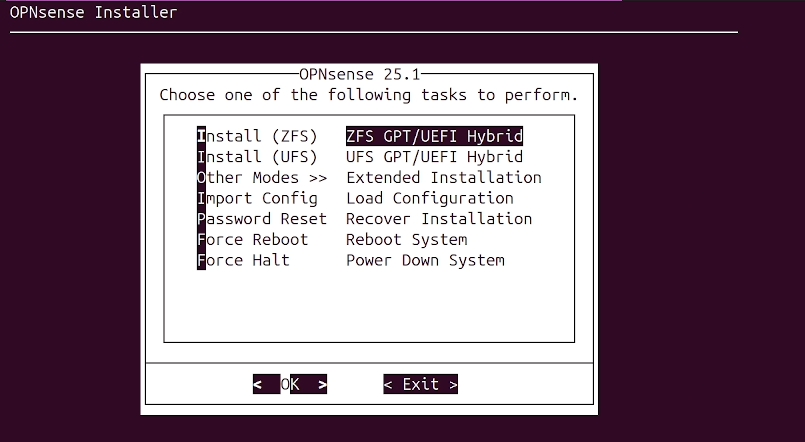

12. We will use ZFS as the filesystem which is the default

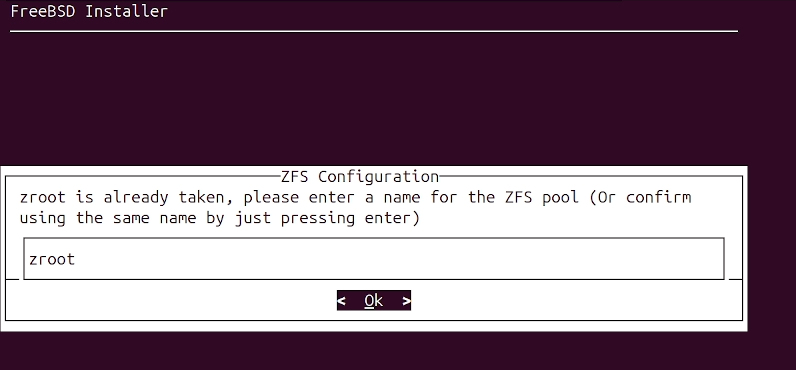

13. We will keep the default pool name

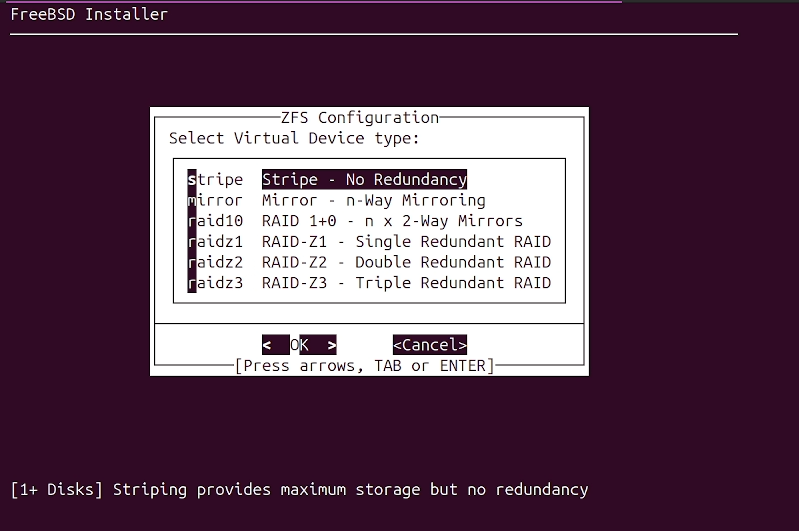

14. We only have a single drive so we will leave the ZFS configuration as stripe

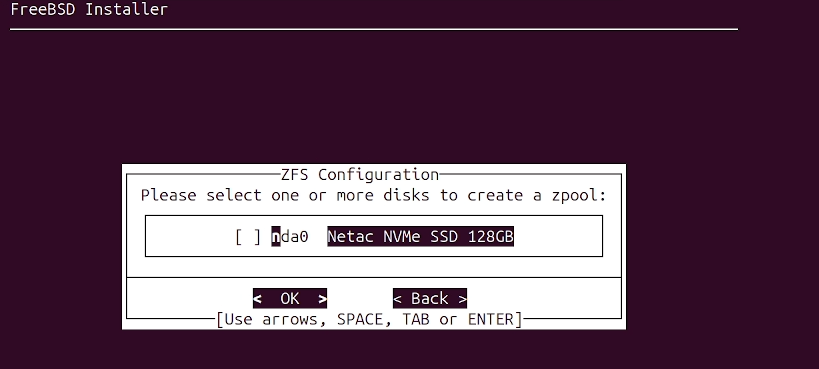

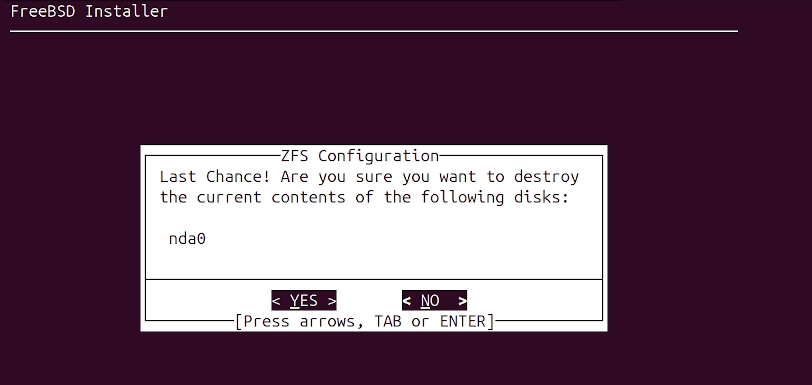

15. We will use [space bar] to select the NVMe drive and select [OK]


16. We will confirm we want to install

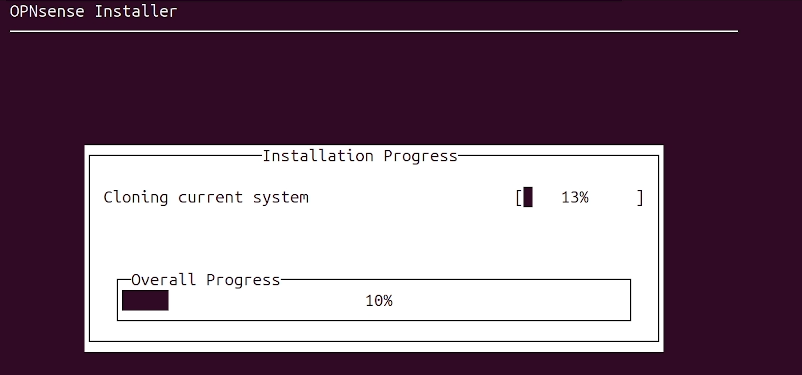

17. The installation will now begin

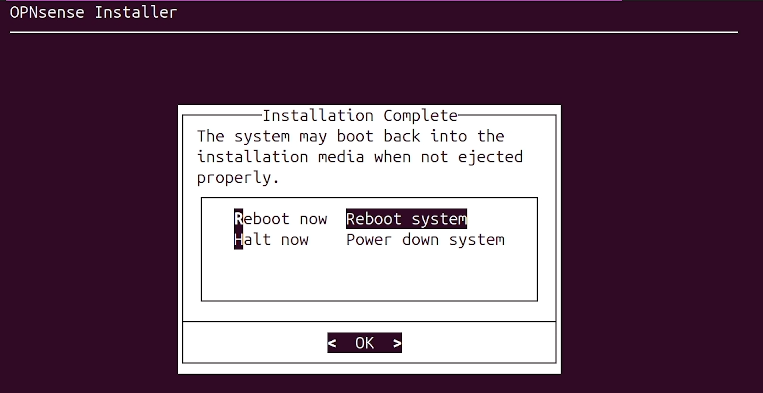

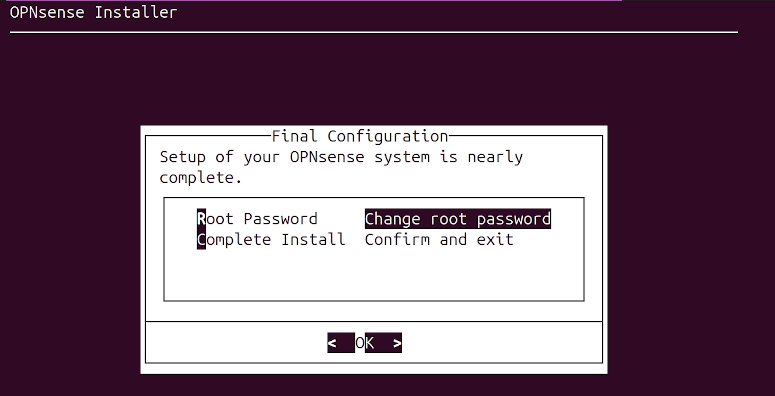

18. For now we will just complete install


19. We will halt the system and then remove the USB and boot back up


20. After confirm boot sequence in bios is set correctly we will let the system boot


Configuring OPNSense

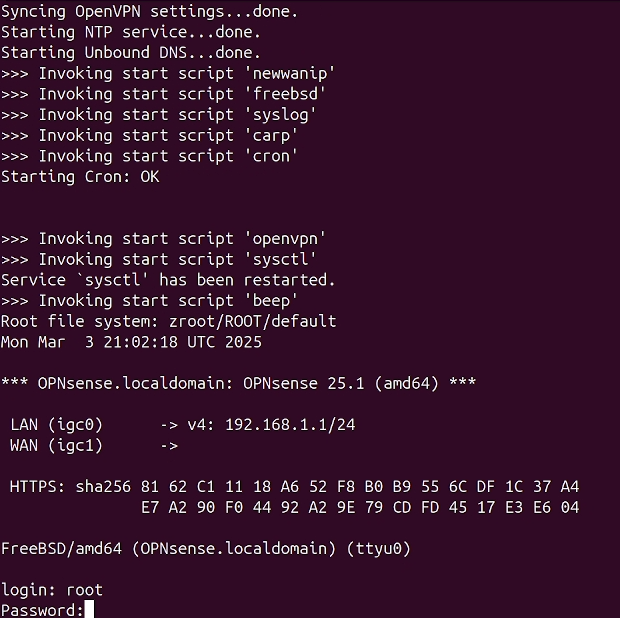

1. We can then login as root and the default password opnsense


2. We will select option 1 and configure interfaces

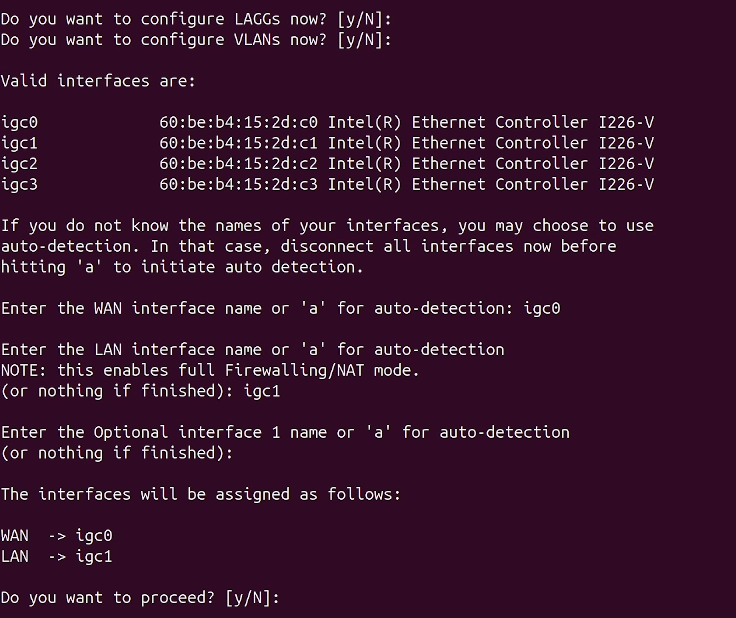

3. We will use igc0 for WAN and igc1 for LAN

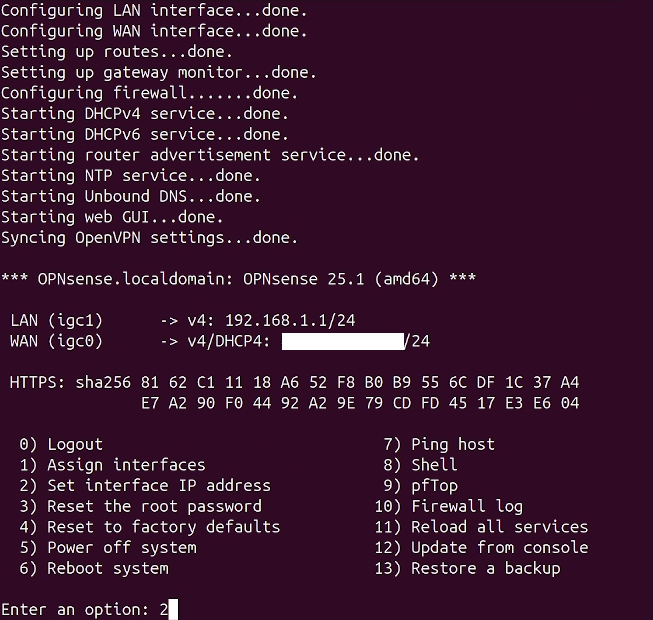

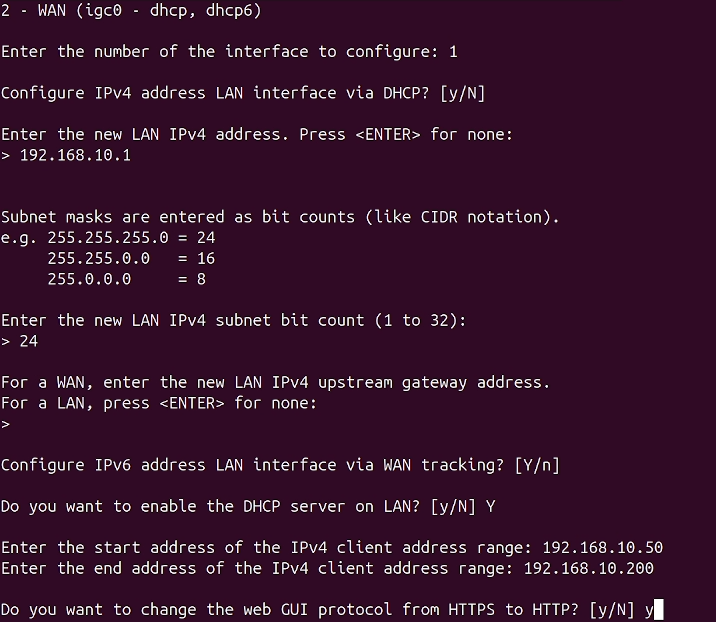

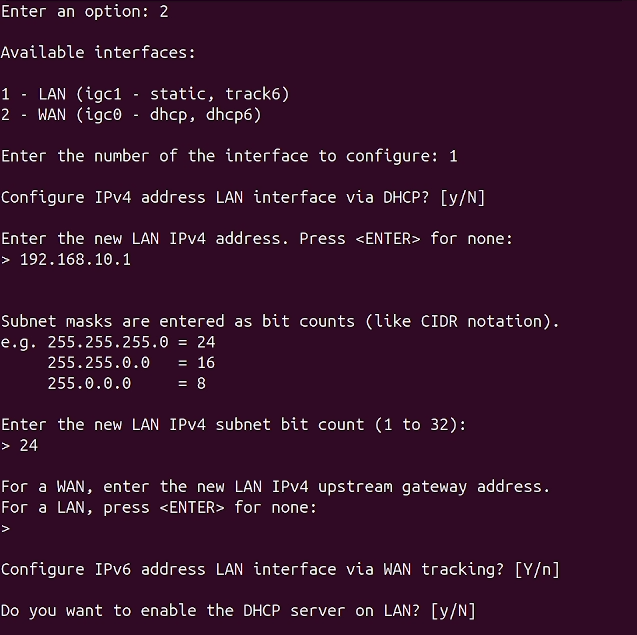

4. Now we have the interfaces assigned correctly we configure igc1 with a static IP Address and configure DHCP





5. We will switch to HTTP for the Web GUI and restore access

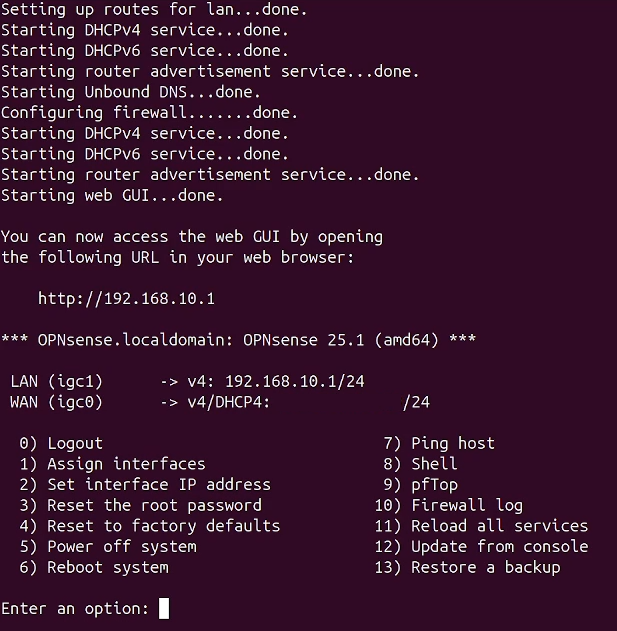

6. We can now log into the Web Interface using the static IP assigned to igc1

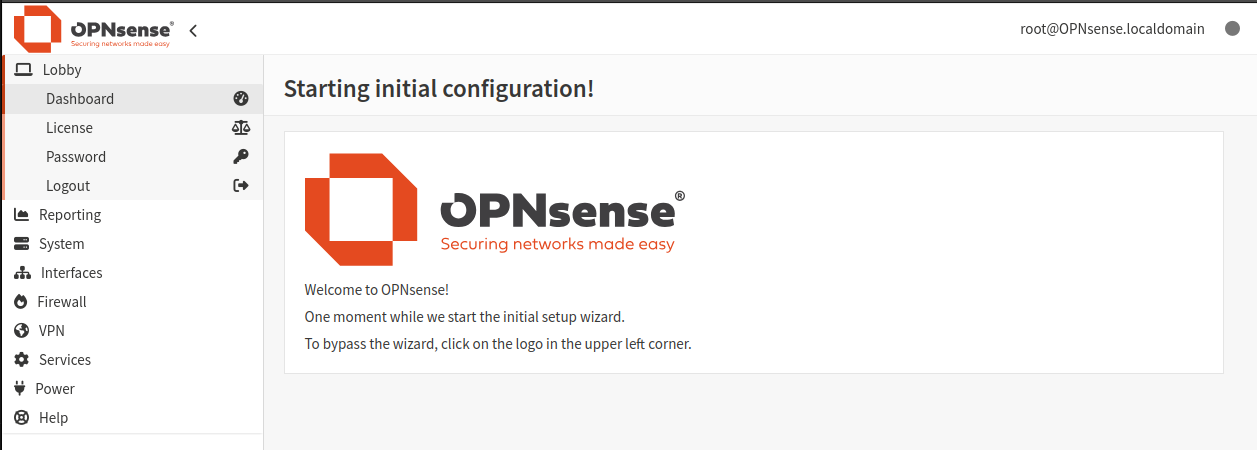

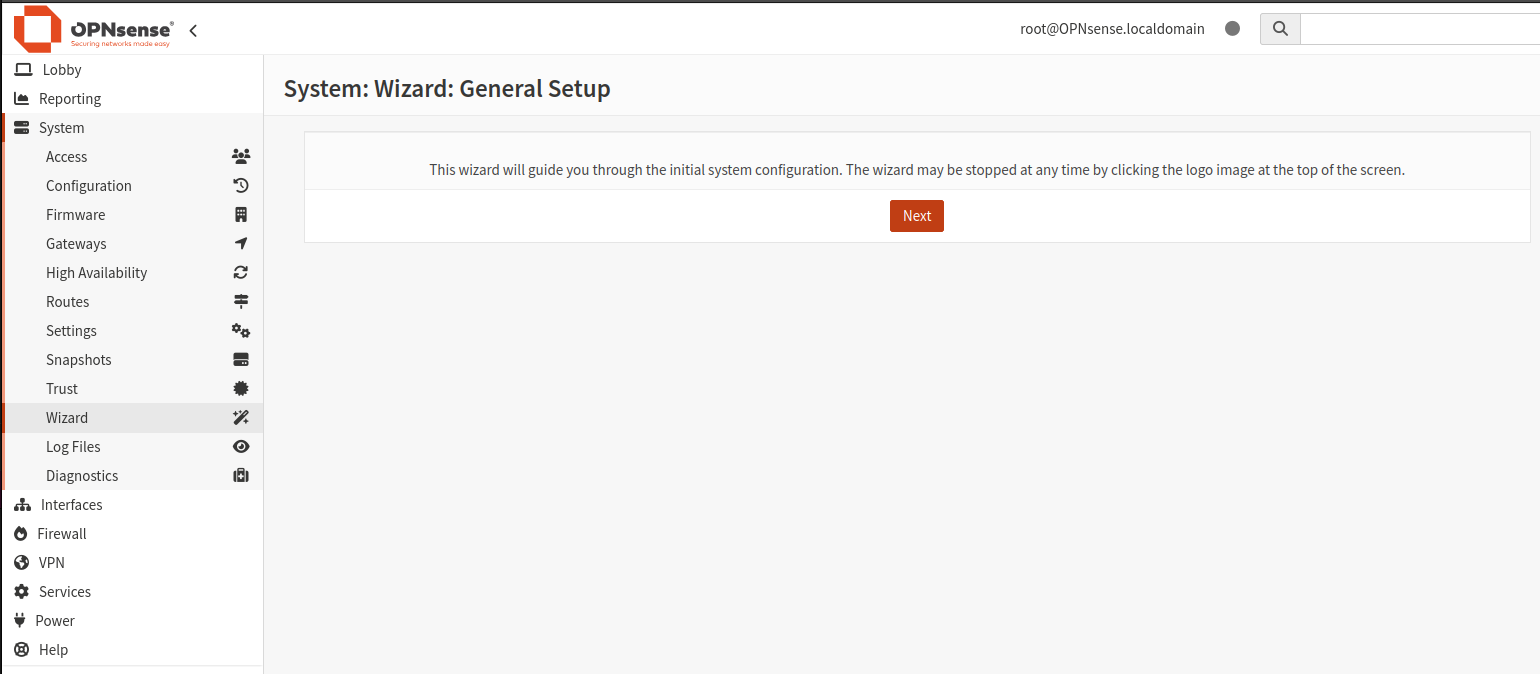

7. Opening the Web Interface we get the wizard

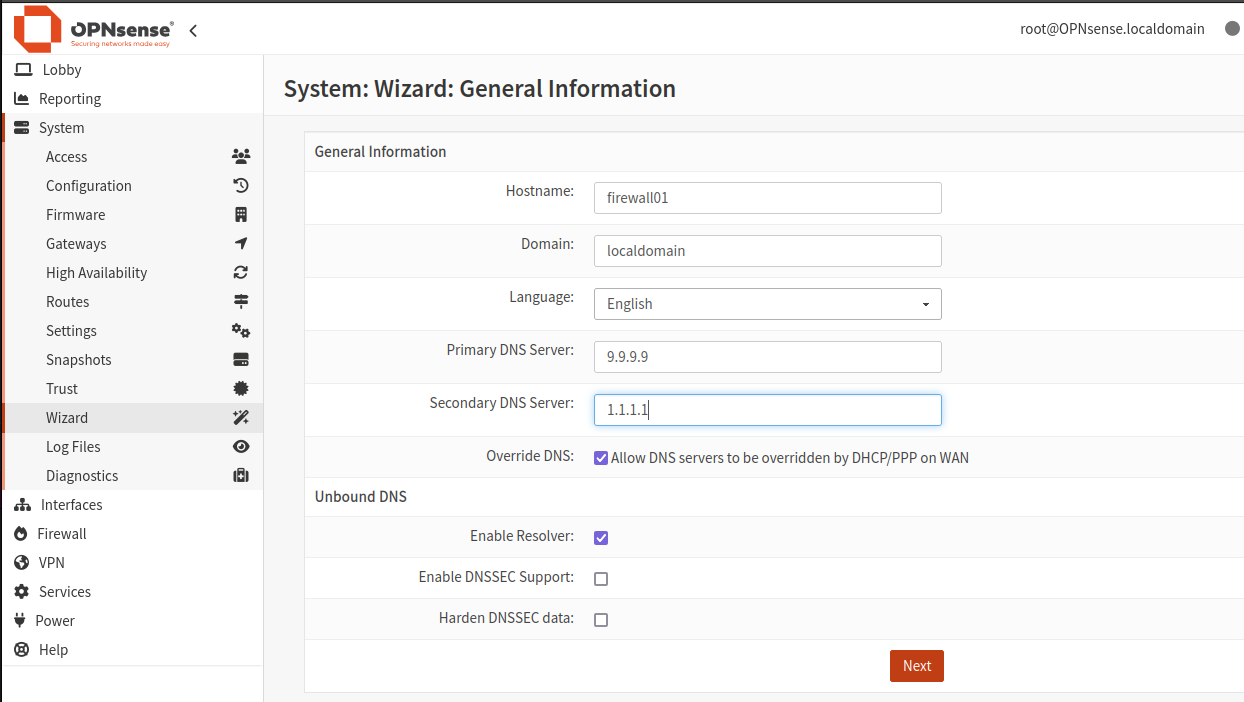

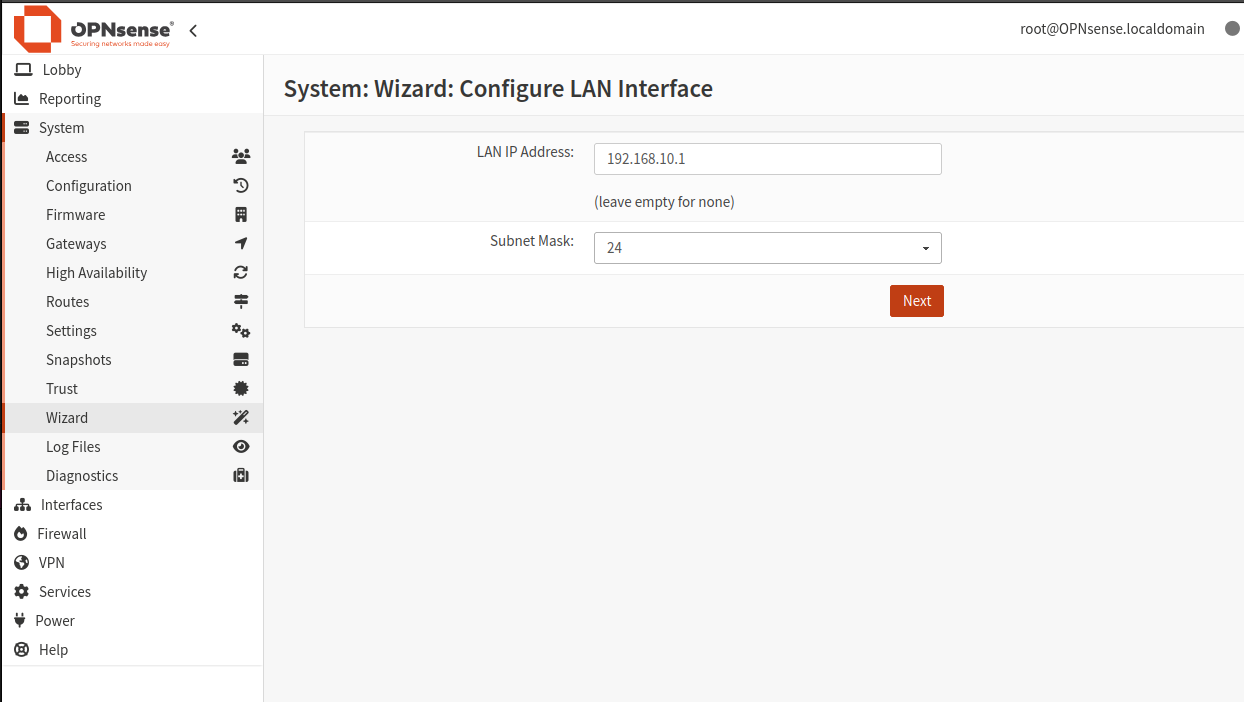

8. We can now name our firewall and set the DNS settings.

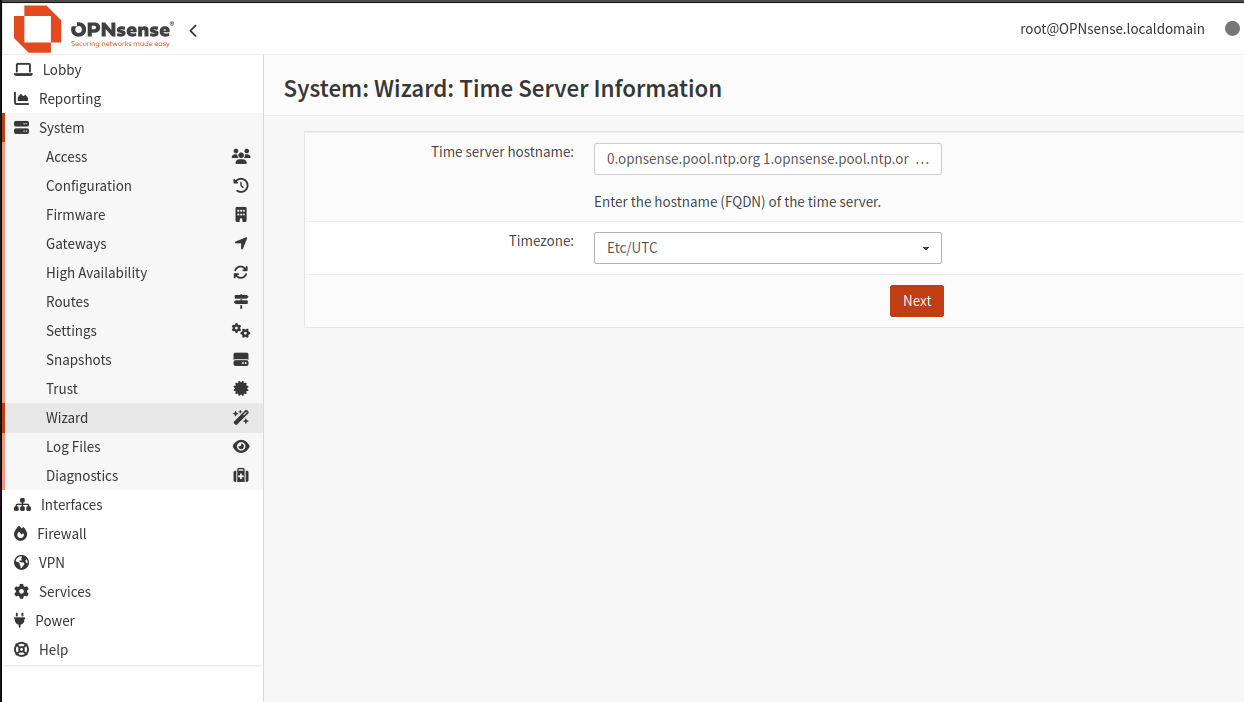

9. We can leave the NPT servers at default and choose our timezone.

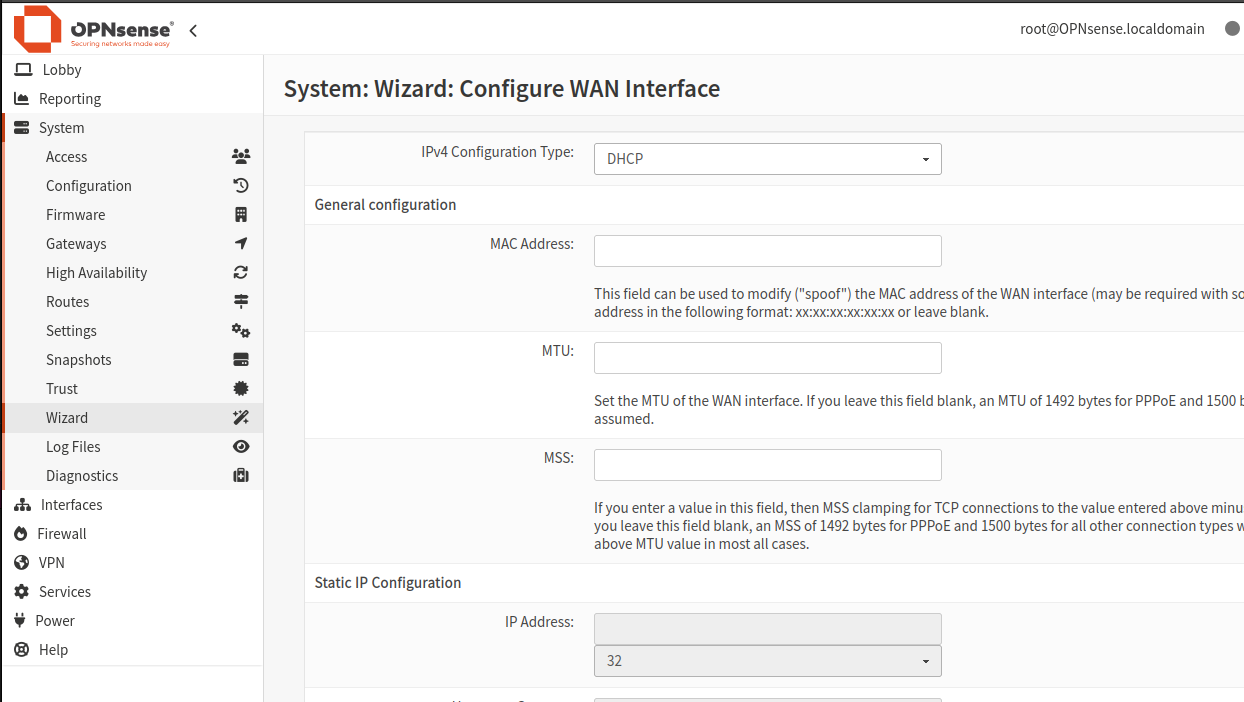

10. We now go through the interface again, here you can make changes if needed

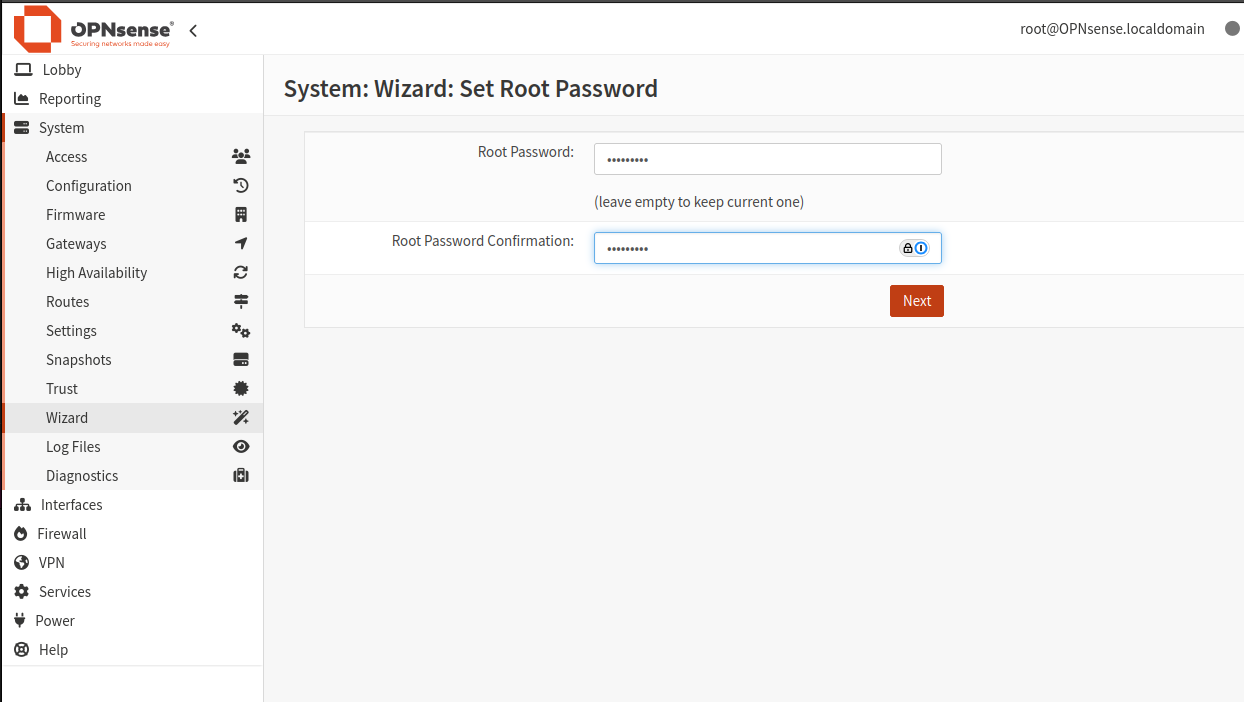

11. We can now update the password, set this to something secure and make a note.

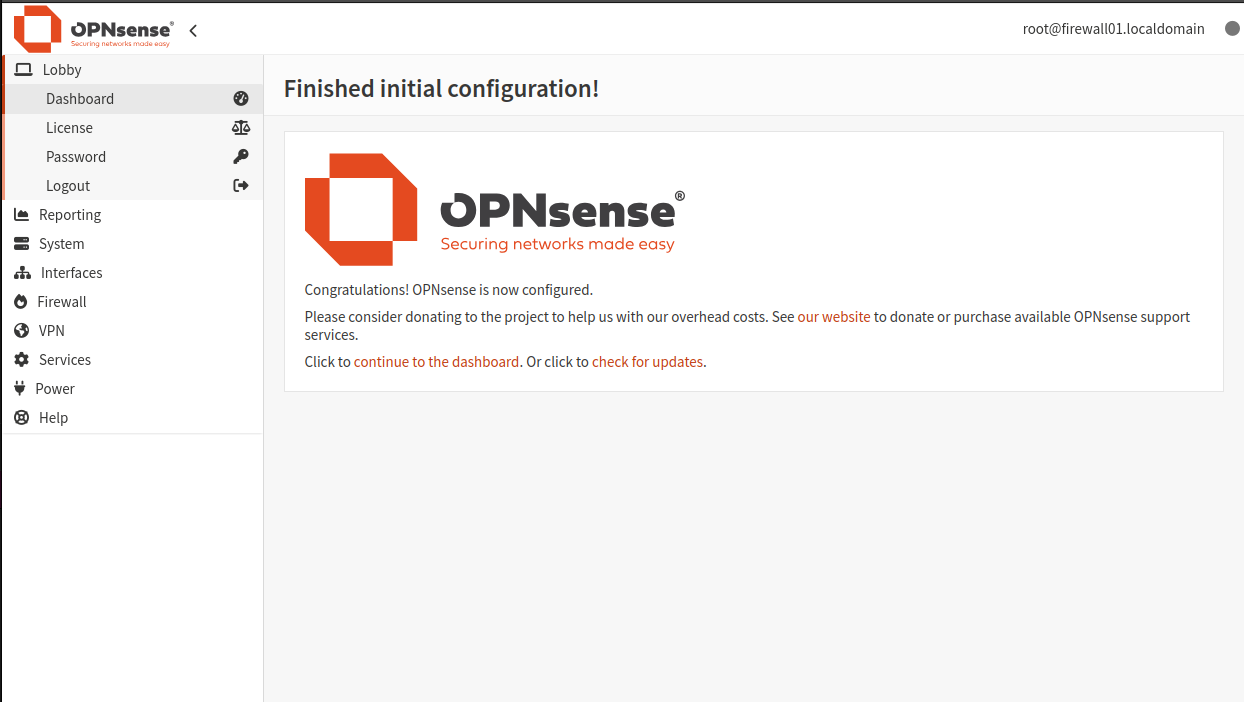

12. With the wizzard complete we can now reboot into our OPNSense install.


13. Once rebooted we can log back in

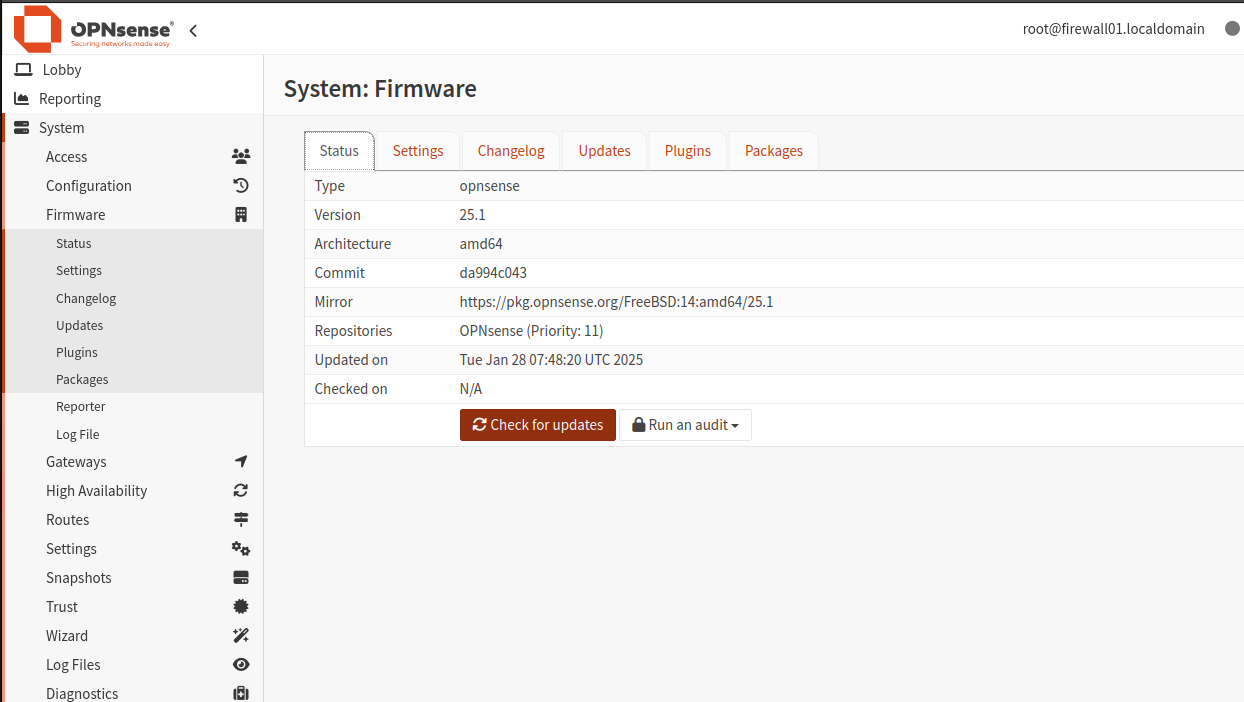

14. The final step is to update the firmware to make sure we are running the latest version. Select System > Firmware < Status and click check for upgrades

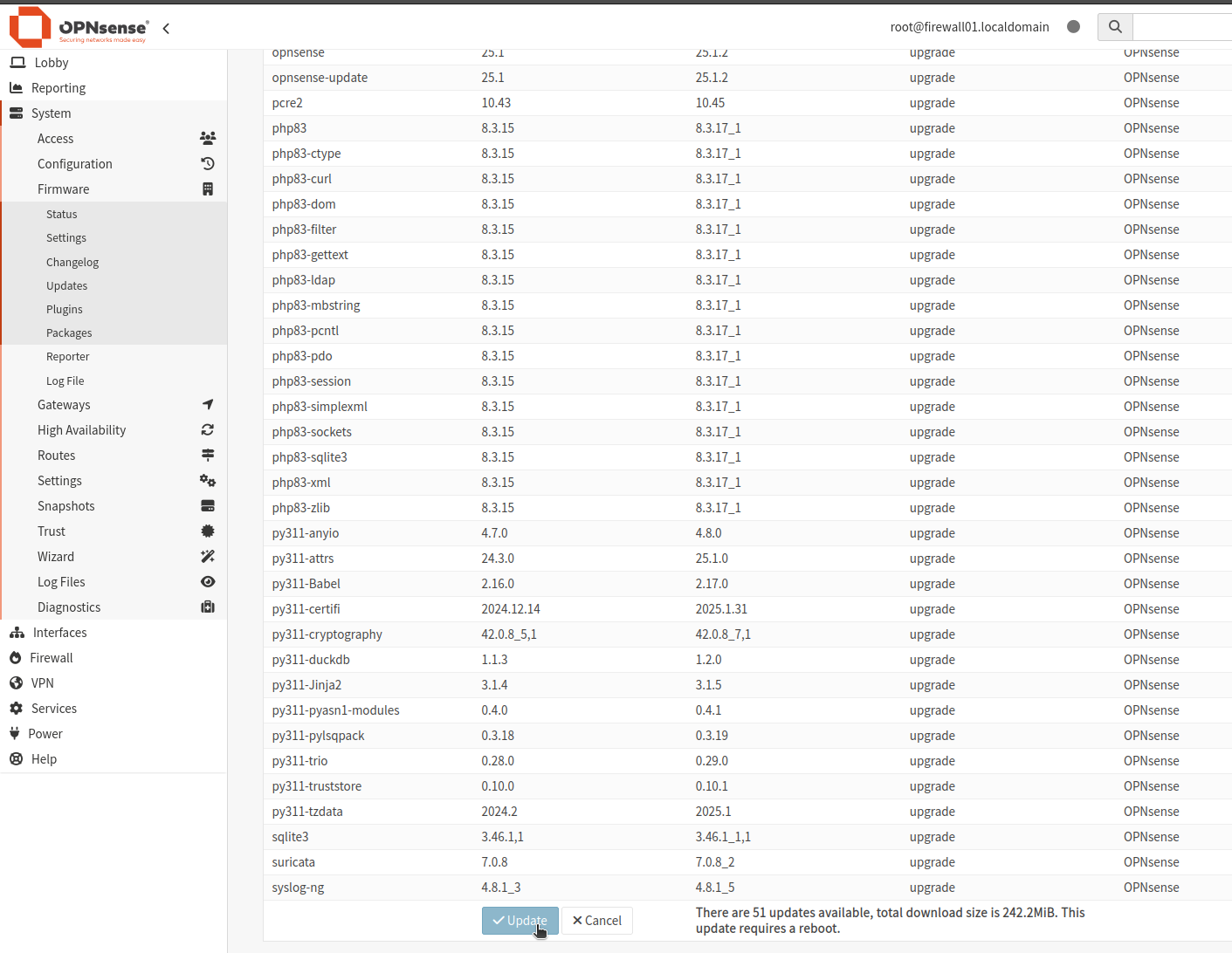

15. We will now get some blurb about the latest version, dismiss this then scroll down to the bottom and click update



16. Once the update is complete the firewall will reboot into the new version.


OPNSense Firewall Video

Below is a quick video to show the installation steps.
